The root grapple is a necessity in the tree industry as well as for contractors clearing a lot for home site building. It is ideal for moving logs, brush, rocks, left over building supplies or just about anything else.

Our Standard Duty Root Grapple has the hydraulic cylinder enclosed, over sized points and bushings as well as the cylinders operating independently to stabilize uneven loads! All bushings have grease fittings to ensure the longest life of the grapple. The Claws (grapples) are built from top quality steel and are solid. The bottom tines are built from 3/8 top quality steel, continuous weld on the front bar as well as the back support.

Each of our cylinders have a 2 inch bore with a 10 inch stroke, and the hydraulic lines are routed inside the tubing to help prevent any tears from limbs, rocks etc. The grapple opening is about 37 inches, with a depth of 34 inches.  Now powder coated for a long lasting finish. Pricing and sizes are below.

• 63" Standard Root Grapple--$1590

• 72" Standard Root Grapple--$1650

Please call us for a shipping quote (336) 247-1270 or (336) 250-8190. Please leave a message if there is no answer, and we will return your call as soon as possible.

Unlimited Fabrication, LLC
PO BOX 454
DENTON, NC 27239

Email us at rootgrapple@gmail.com



credit cards

Click here for more pictures

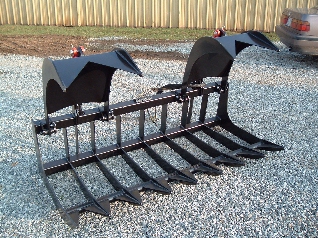

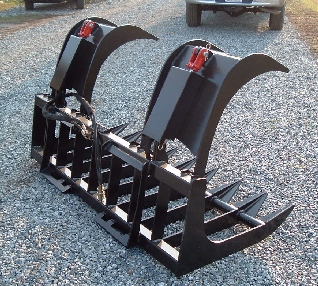

standard root  grapple

Fits all skid steers with universal quick attach system including Bobcat, Case, John Deere, Caterpillar, New Holland, Daewoo, Skat Trak, Thomas, Takeuchi, Mustang, Hydra-Mac, JCB, Kubota and others



*measurements subject to change*
